| Model |

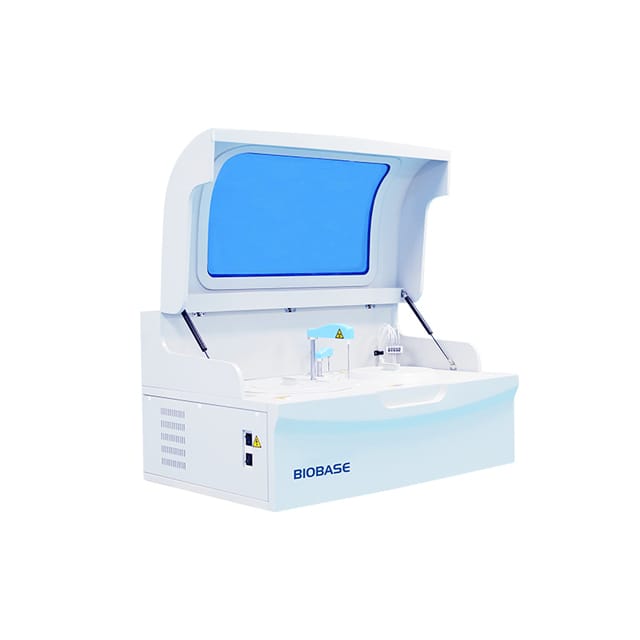

BK-280 |
| Overall
Performance |
Throughput |
200Tests/Hour |
| Analysis Method |
End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
| Certificates |
CE, FDA, ISO9001, ISO14001, ISO13485 |
| Sample & Reagent Unit |
Sample Positions |
49 sample positions |
| Reagent Positions |
56 reagent positions |
| Sample Volume |
2-70μL |
| Reagent Volume |
20-350μL |
| Probe |
Teflon coating, with anti-collision function, liquid level detection function |
| Probe Washing |
Automatic washing of interior and exterior |
| Reagent Cooling |
Refrigerated tray with independent switch |
| Reaction System |
Temperature Control |
37±0.2℃ |
| Cuvettes |
120 reusable cuvettes, optical length 6mm |
| Mixer Probe |
Independent stirring |
| Washing |
Automatic cuvettes washing |
| STAT function |
YES |
| Optical System |
Light Source |
12V/30W halogen lamp |
| Spectrophotometry |
Post-spectral spectrophotometry |
| Wavelength |
340,405,450,480,505,546,570,600,630,700,750,800nm |
| Absorbance |
0~3.0Abs |
| Calibration&QC |
Calibration |
Linear: K factor, 1-point, 2-point and multipoint linear
Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
| Quality Control |
Real-time QC, Westgard multi rule, Cumulative sum check, Twin Plot(2D) |
| Data Management |
Software |
Windows 7/8/10, 32or64 bit |
| LIS System |
Bi-direction, support HL7 protocol |
| Interface |
LAN port access |
| Printer |
External, multiple reporting modes available |
| Working Conditions |
Power Supply |
AC220V±10%, 60/50Hz,, 110V±10%, 60Hz, 300W |
| Temperature |
10～30℃ |
| Water Consumption |
Deionized water:5L/H |
| Humidity |
40-85% |
| Size & Weight |
External Size (W*D*H) |
950*603*510mm |
| Net Weight |
65kg |
| Package Size(W*D*H) |
1085*700*1012mm |
| Gross Weight |
140kg |
